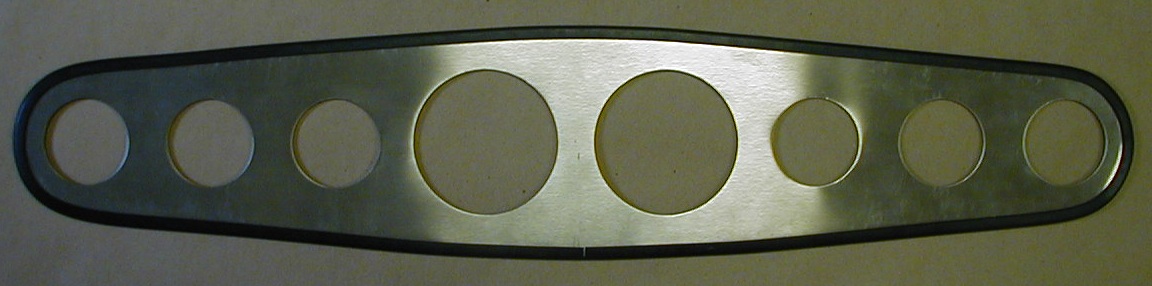

Graffiti Dash Panel Insert



Graffiti Alternator Mounting








Graffiti Front Fenders




Phil Basile's Graffiti Front Fenders Mounts

for Willwood Disc Brakes






Graffiti 4" Chop Radiators now available!!






Graffiti Accurate Shocks available!






Graffiti Shift Knobs now available!






                       Click picture to see American Graffiti Parts       Click picture to see other 1932 Ford Parts   Click picture to see New Stock Graffiti Style Floor

Click picture to see New Stainless Steel Graffiti Rear Nerf Bar                         Click picture to see New Products



 Borg Warner Transmission ID and Ratio Guide

T-10's come in many different ratios.  It's important to know the particulars of your hot rod's drivetrain before purchasing.

If you intend to run a numerically high rear end gear (4.11 or more) the Close Ratio & Wide Ratio will work properly, although highway driving would be rough with this gear, running Approx. 3100 RPM,  3.73, Approx. 2800 RPM,  3.25, approx. 2500 RPM @ 60 MPH w/ a 27" tall tire.  It's adviseable to use a wide ratio box with less then a 4.10 Ratio.  First gear acceleration is reduced with the close ratio gear box, which is why they're typically run with short gears.

Series
Gear Ratio
1st, 2nd, 3rd, 4th
Spline
Input
Groove
Input
Output
Spline
T-10 Close Ratio
T-10 Close Ratio
T-10 Wide Ratio
T-10 Wide Ratio
T-10 Close Ratio
(HI Nickle)

ST-10
ST-10
ST-10
ST-10

57-62    2.20, 1.66, 1.31, 1.00
62-65    2.20, 1.64, 1.31, 1.00
61-62    2.54, 1.92, 1.51, 1.00
62-65    2.54, 1.89, 1.51, 1.00
64-65    2.20, 1.64, 1.31, 1.00


74-95    2.43, 1.61, 1.23, 1.00
74-95    2.64, 1.75, 1.33, 1.00
74-95    2.88, 1.91, 1.33, 1.00
74-95    3.42, 2.28, 1.46, 1.00

10
10
10
10
10


26
26
26
26

none
none
1
1
3


2
3
4 or 5
6

16
16
16
16
27


32
32
32
32

All Borg Warners carry assembly data code
(example: WA1923, W = Warner trans., A = January, 19 = day of month, 2 = production year, 3 = shift 1,2,3).
No I's used in transmission assembly or casting codes.
